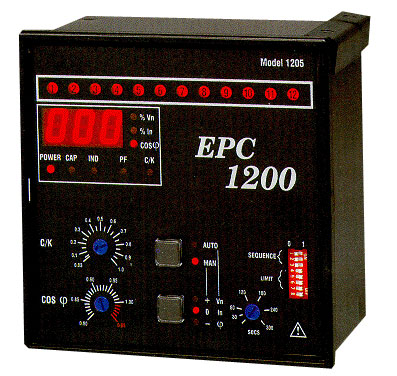

EPC 600(6steps) & 1200(12steps)
FEATURES
· Capable of automatic control in 6 steps or 12 steps
· Compact size and enhanced reliability enabled by built in microprocessor
· Automatic switching of frequence (50Hz or 60Hz)
· Can switch capacitors on/off manual to check wiring
· Variety switching sequence
SPECIFICATION
·Operating voltage
·Operating temperature
·Power consumption
·CT input current
·Capacitor closing time
·C/K setting
·Target power Factor setting
· 110V (220V) ±10%
· -10℃ ∼ +60℃
· 10VA
· ××× / 5A
· 9 ∼ 300 secs
· 0.03 ∼ 1.0
· 0.80 lag ∼ 1 ∼ 0.95 lead

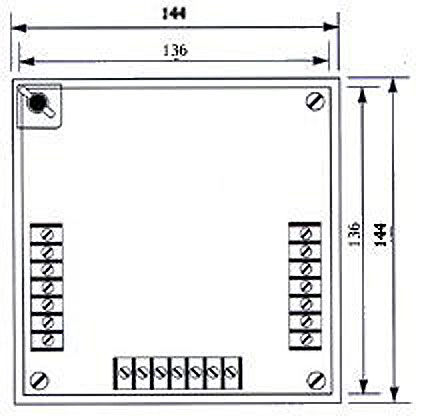

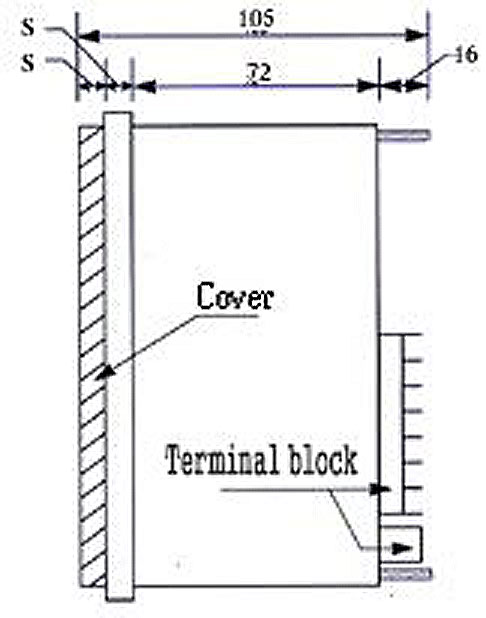

DIMENSIONS( unit : mm )
EPC 600 (6 steps) and 1200 (12 setps) have the same panel cut-out dimension 138mm×138mm
